DWT 16000 HD
Commercial & Utility vehicles
Emergency & defense
Voltage: 12V/24V
Motor: 7,8 HP
Pulling rate: 16000 lb/7257 kg
Gear train: 3 stage planetary
Reduction rotio: 358:1
Brake: dynamic
Length of the steel cable: 30 m
Length of the synthetic rope: 21 m
Weight: 62 kg
Mounting bolt patern: 254 mm x 114 mm
Overall product dimensions (LxWxH): 574 mm x 196 mm x 266 mm
DESIGNED AND ENGINEERED IN THE POLAND

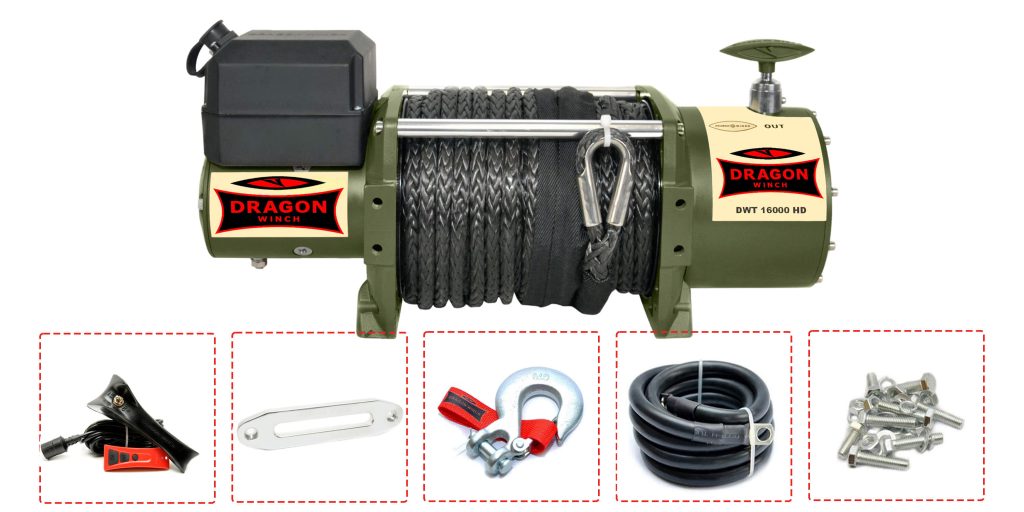

Set components
Technical parameters
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 2902 | 5806 | 7257 |
| CABLE SPEED | m/min | 5,3 | 3,9 | 2,7 | 1,5 |
| POWER CONSUMPTION 12V | amp | 64 | 114 | 231 | 440 |
| POWER CONSUMPTION 24V | amp | 39 | 108 | 219 | 250 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 7257 | 6020 | 5182 | 4496 | 3734 |
| CABLE LENGTH ON THE DRUM | m | 5,3 | 11,5 | 19,3 | 27,9 | 30,0 |
