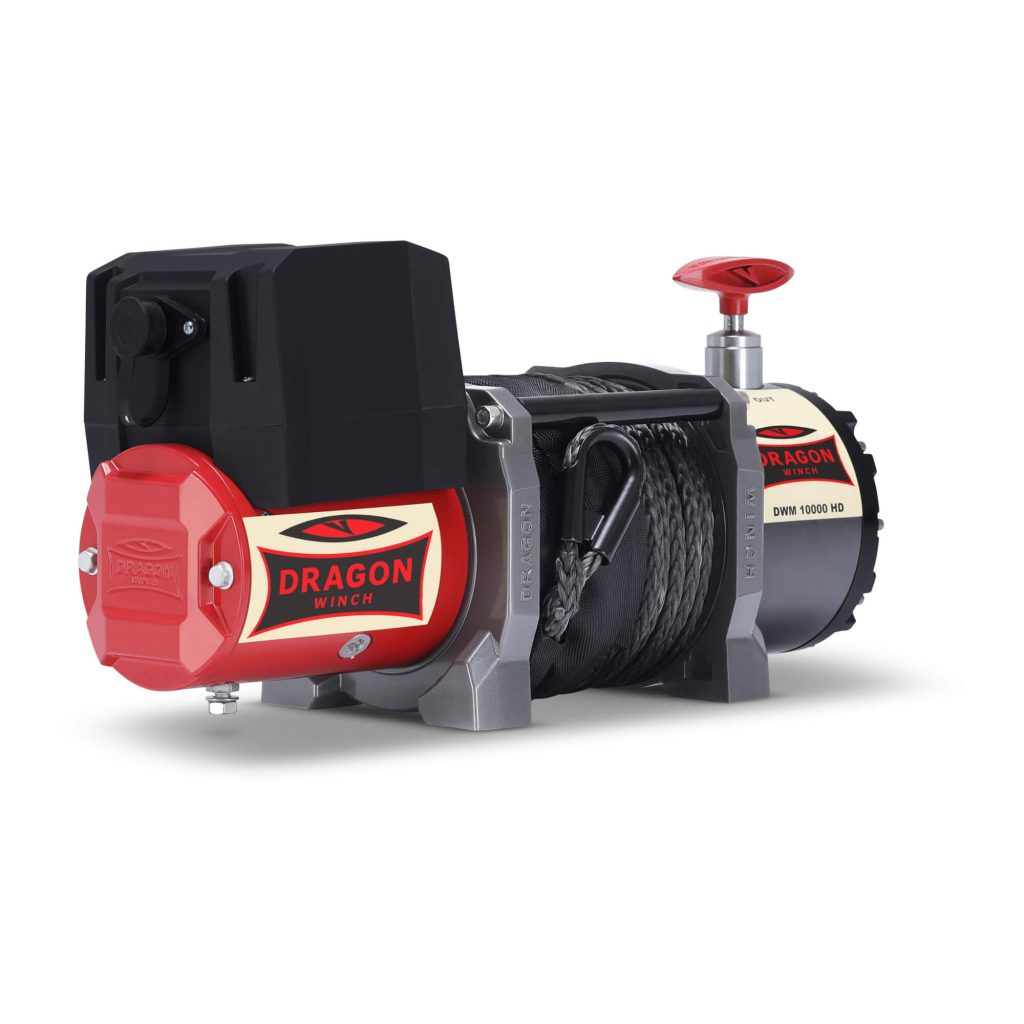

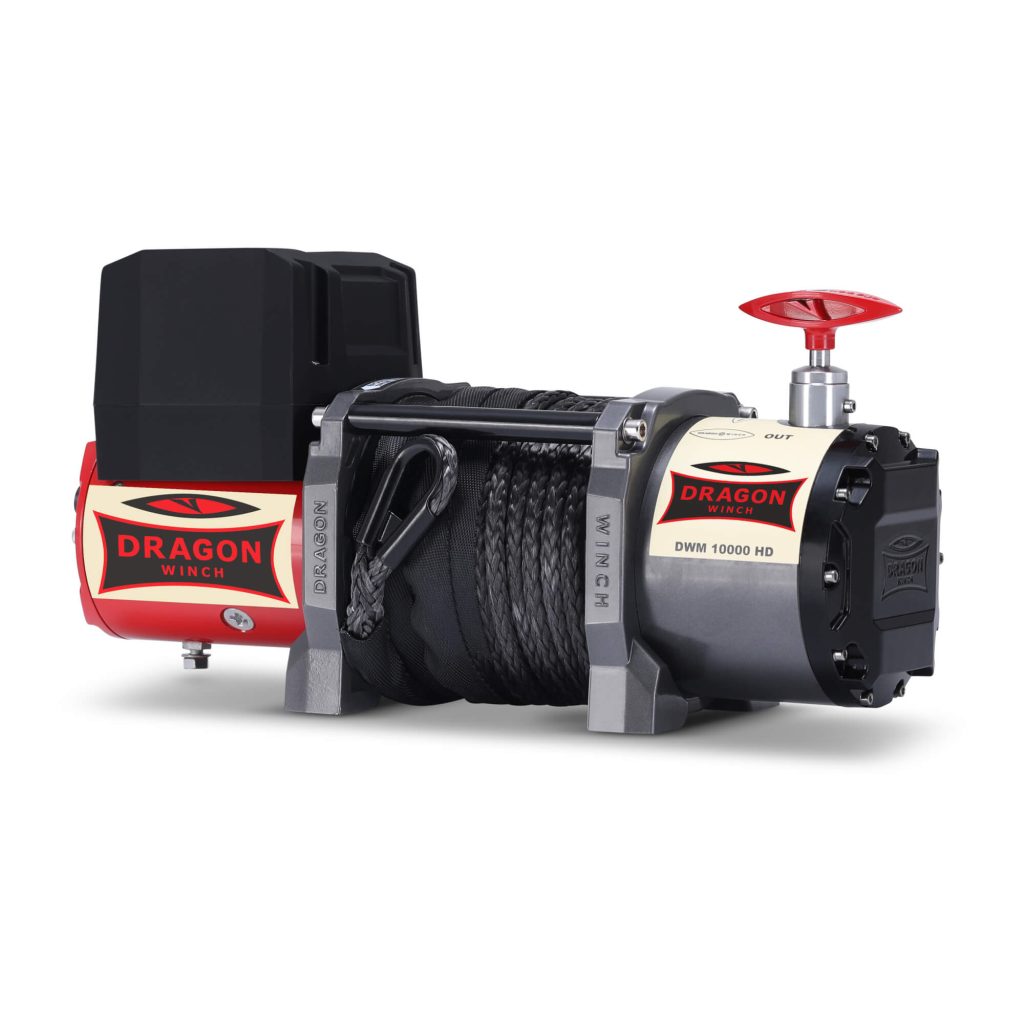

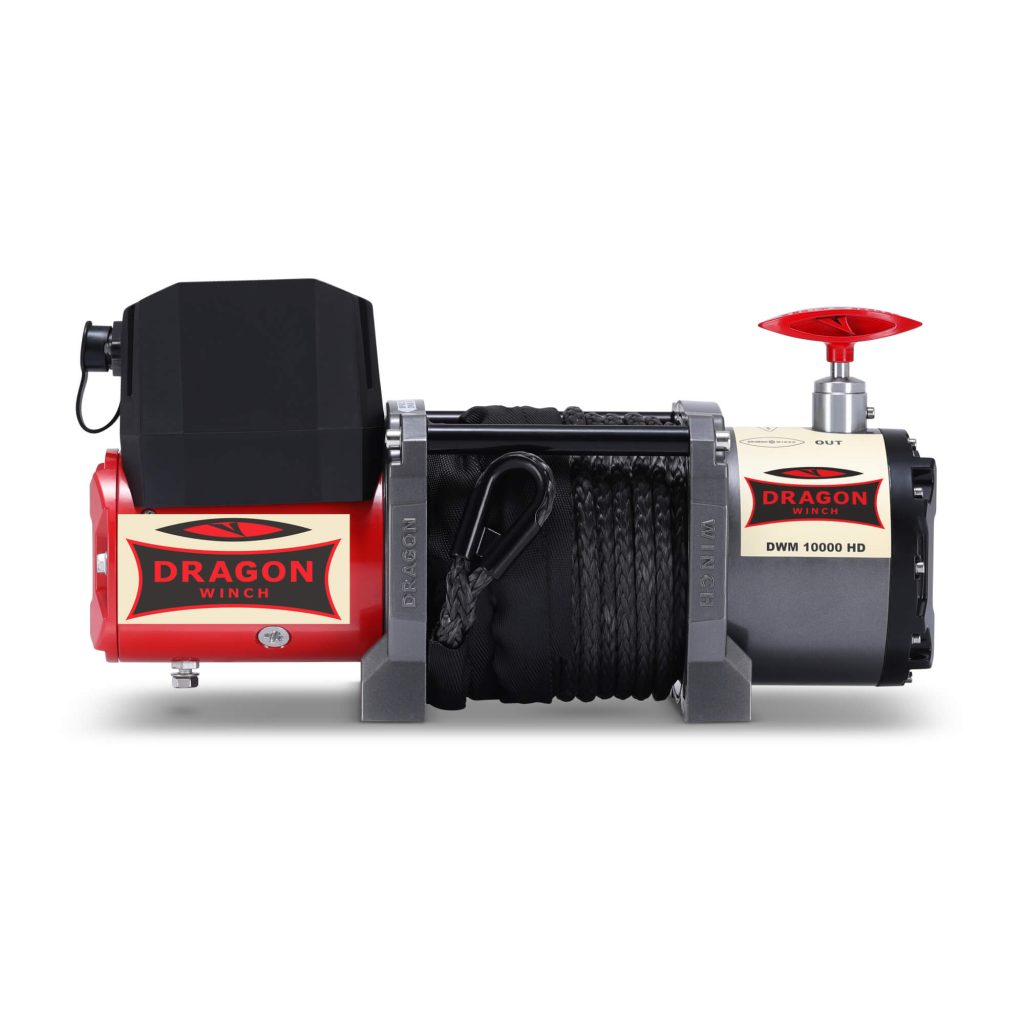

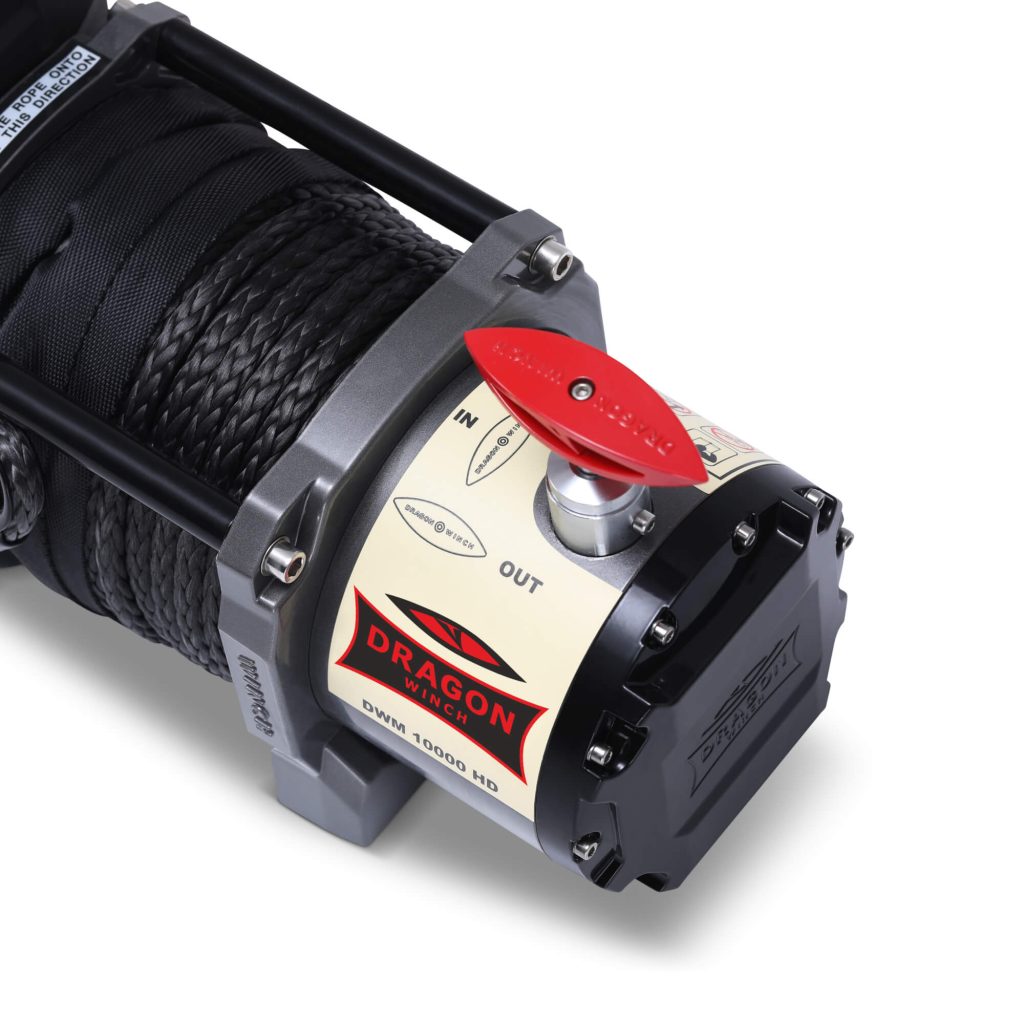

DWM 10000 HD
Commercial & Utility vehicles
For Jeeps & Off Road
Voltage: 12V
Motor: 6,8 HP
Pulling rate: 10000 lb/ 4536 kg
Gear train: 3 stage planetary
Reduction rotio: 265:1
Brake: dynamic
Length of the steel cable: 24 m
Weight: 35 kg
Mounting bolt patern: 164 mm x 114 mm
Overall product dimensions (LxWxH): 450mm x 153mm x 228 mm
DESIGNED AND ENGINEERED IN THE POLAND
YOU CAN ORDER IT HERE
ORDER

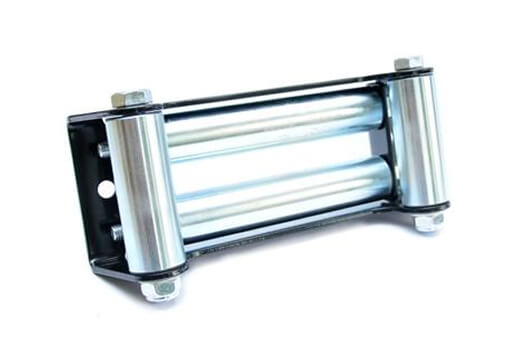

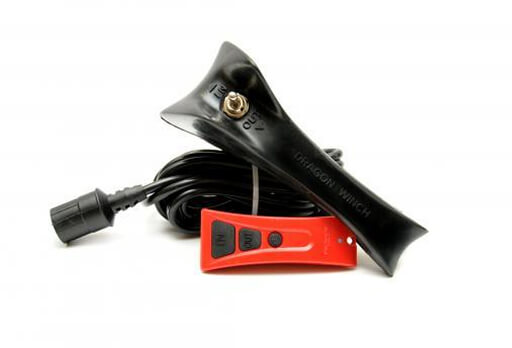

Set components
Technical parameters
DOWNLOAD THE MANUAL
DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 1814 | 4536 |
| CABLE SPEED | m/min | 5,9 | 3,6 | 1,3 |
| POWER CONSUMPTION | amp | 50 | 180 | 390 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 4536 | 3583 | 3084 | 2676 | 2270 |
| CABLE LENGTH ON THE DRUM | m | 3,6 | 7,8 | 12,4 | 17,8 | 24,0 |
