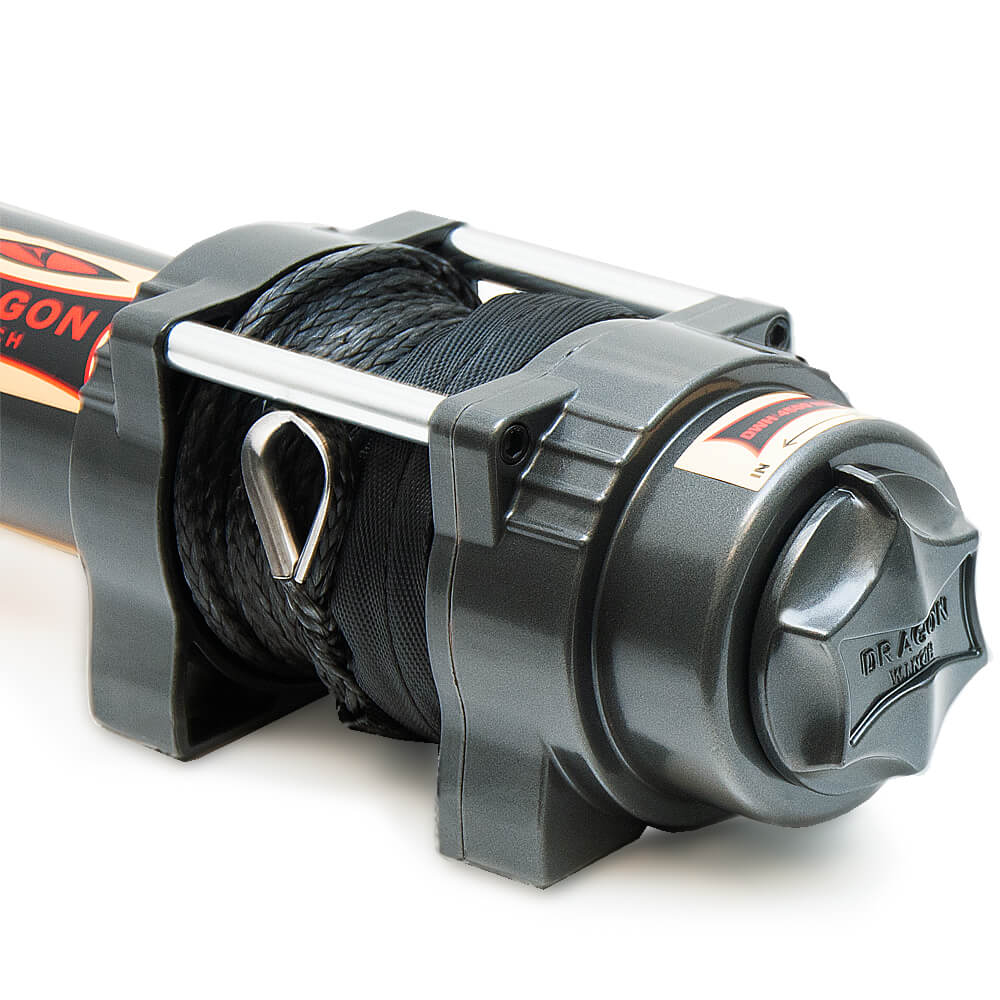

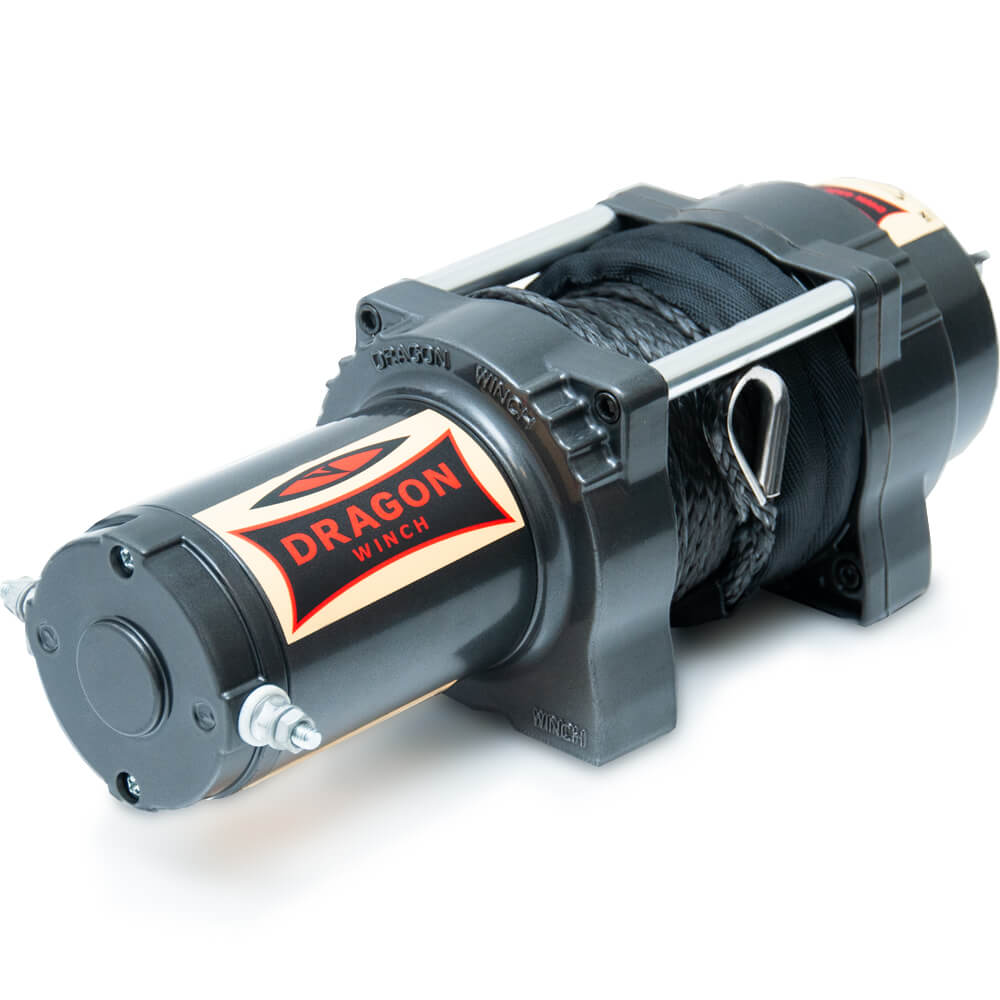

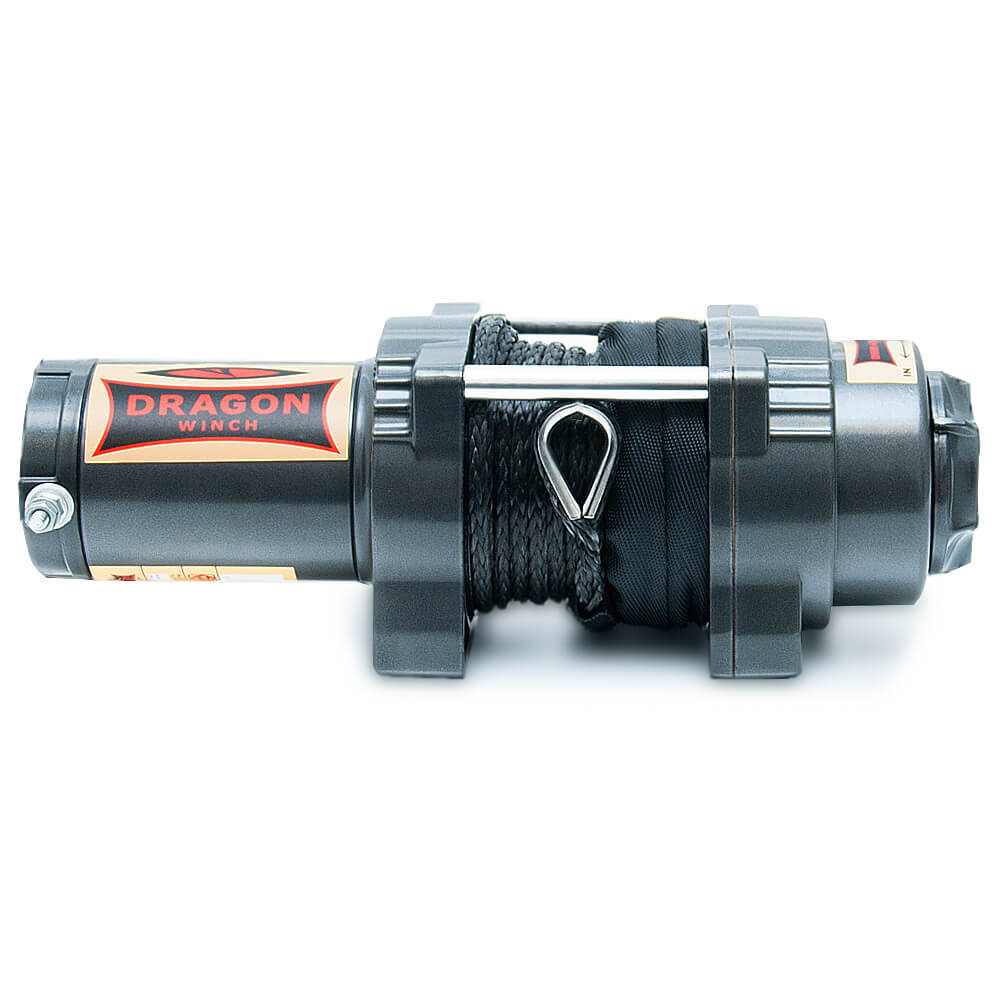

DWH 4500 HD
ATV & UTV
Voltage: 12V
Motor: 1,9 HP
Pulling rate: 4500 lb/ 2041 kg
Gear train: 3 stage planetary
Reduction rotio: 138:1
Brake: automatic
Length of the steel cable: 15 m
Length of the synthetic rope: 15 m
Weight: 13 kg
Mounting bolt patern: 124 mm x 76 mm
Overall product dimensions (LxWxH): 340 mm x 114 mm x 115 mm
DESIGNED AND ENGINEERED IN THE POLAND
YOU CAN ORDER IT HERE
ORDER
Set components
Technical parameters
DOWNLOAD THE MANUAL
DOWNLOAD
CABLE WINDING SPEED AND POWER CONSUMPTION
(THE FIRST CABLE LAYER ON THE DRUM)
(THE FIRST CABLE LAYER ON THE DRUM)
| CABLE LOAD | kg | - | 453 | 907 | 2041 |
| CABLE SPEED | m/min | 6,3 | 5,3 | 4,5 | 2,1 |
| POWER CONSUMPTION 12V | amp | 23 | 40 | 81 | 160 |
PULLING FORCE DEPENDING ON CABLE LAYER
| CABLE LAYER | 1 | 2 | 3 | 4 | 5 | |
| CABLE PULL | kg | 2041 | 1612 | 1388 | 1204 | 1001 |
| CABLE LENGTH ON THE DRUM | m | 2,3 | 4,9 | 8,0 | 11,1 | 15,0 |
